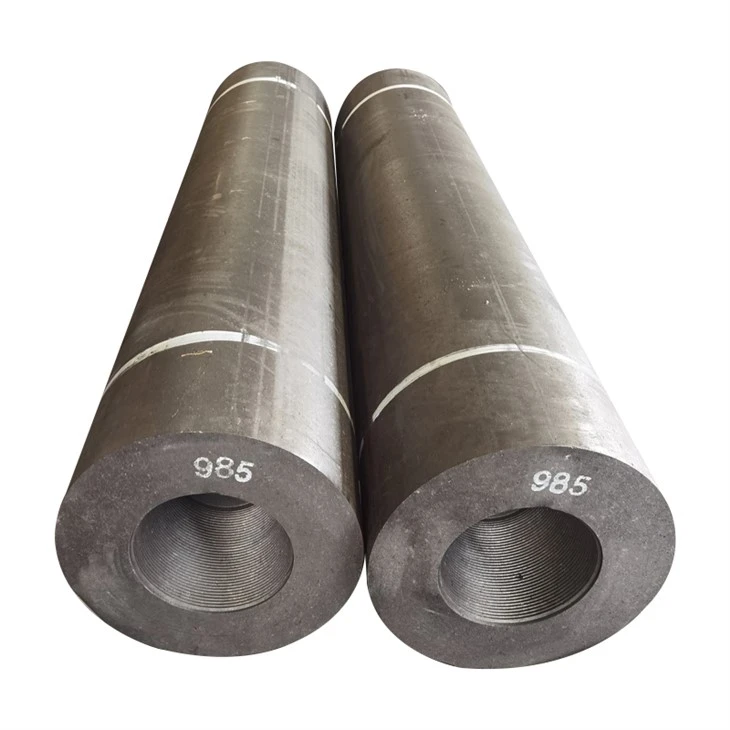

UHP Graphite Electrode For Carbon Fiber Production
Products Description
UHP graphite electrode for carbon fiber production
UHP (Ultra High Power) graphite electrodes can also be used in carbon fiber production. In this process, UHP graphite electrodes are used to heat and melt polyacrylonitrile (PAN) fibers, which are then carbonized to produce carbon fibers. UHP graphite electrodes are preferred for this application because they can provide the high temperatures necessary for the carbonization process and are highly resistant to oxidation, ensuring a longer service life.
Products parameters
UHP graphite electrode Product Specification
UHP graphite electrode diameter and allowable deviation
|
UNIT (MM) |
||||
|
Name |
Nominal Diameter mm |
Actual Maximum Diameter mm |
Actual Minimum Diameter mm |
Nominal Length mm |
|
UHP Graphite electrode |
300 |
307 |
302 |
1600/1800/2000 |
|
350 |
357 |
352 |
1600/1800/2000 |
|
|
400 |
409 |
403 |
1600/1800/2000/2200 |
|
|
450 |
460 |
454 |
1600/1800/2000/2200 |
|
|
500 |
511 |
505
|
1800/2000/2200/2400 |
|
|
550 |
562 |
556 |
1800/2000/2200/2400/2700 |
|
|
600 |
613 |
607 |
2000/2200/2400/2700/3000 |
|
|
650 |
663 |
659 |
2200/2400/2700/3000 |
|
|
700 |
714 |
710 |
2200/2400/2700/3000 |
|
Physical & chemical properties of UHP graphite electrode and nipples
|
Item |
Unit |
Nominal diameter (mm) |
||||
|
UHP graphite electrode |
||||||
|
350～500 |
550～750 |
|||||
|
Guaranteed |
Typical |
Guaranteed |
Typical |
|||
|
lSR ≤ |
E |
UΩ*m |
6.3 |
5.0～6.0 |
5.8 |
4.8～5.5 |
|
N |
5.3 |
3.8～4.5 |
4.3 |
3.5～4.1 |
||
|
Flexural Strength ≥ |
E
|
MPA |
10.5 |
11.0～13.0 |
10.0 |
10.0～13.0 |
|
N |
20.0 |
20.0～25.0 |
23.0 |
24.0～30.0 |
||
|
Elastic modulus≤ |
E |
GPA |
14 |
8.0～12.0 |
14.0 |
7.0～10.0 |
|
N |
20.0 |
12.0～16.0 |
22.0 |
16.0～21.0 |
||
|
Bulk density ≥ |
E |
G/CM3 |
1.66 |
1.68～1.73
|
1.68 |
1.69～1.73 |
|
N |
1.75 |
1.76～1.82 |
1.78 |
1.79～1.84 |
||
|
CTE(100 ℃-600℃) |
E |
10-6/℃ |
1.5 |
1.3～1.5 |
1.5 |
1.3～1.5 |
|
N |
1.4 |
1.0～1.3 |
1.3 |
1.0～1.3 |
||
|
ASH ≤ |
% |
0.5 |
0.2～0.4 |
0.5 |
0.2～0.4 |
|
Applications
The production of high-performance carbon fiber reinforced polymer (CFRP) composites used in aerospace and automotive industries.
The production of carbon fiber used in sports equipment such as tennis rackets, golf clubs, and fishing rods.
The production of carbon fiber used in wind turbine blades and other renewable energy applications.
The production of carbon fiber used in the construction industry for strengthening and reinforcing concrete structures.
The production of carbon fiber used in the medical industry for prosthetic limbs and implants.
Packing and Shipping
Finished Graphite Electrodes are packed according to customers' requirements, shipped via containers or trucks, and provided with perfect after-sales service.
FAQ
1. Are you a Manufacturer or Trader?
We are manufacturer,we have our own factory.
2. When can I get the price?
We usually quote within 8 hours after getting your detailed requirements,like size,quantity etc.If it is an urgent order,you can call us directly.
3. What about the lead time for mass product?
The lead time is based on the quantity, about 7-12days.For graphite product,apply Dual-use items license need about 15-20 working days.
4. What is your terms of delivery?
We accept FOB,CFR,CIF,EXW,DAP,DDP,etc.You can choose the most convenient way for you.Besides that,we can also shipping by Air and Express.
5. Do you provide samples?
