UHP 500 To700MM Graphite Electrode
UHP graphite electrode refers to a kind of ultra high power graphite based electricity conduction material, which adopts petroleum coke, needle shaped coke as aggregate, coal asphalt as binder, and are processed by complex crafts such as calcining, crushing, milling, batching, mixing, forming, roasting, impregnating, graphitization and mechanical processing. UHP graphite electrode is usually used as conductor of large capacity electric arc furnace. The intense electric arc generated between UHP graphite electrode and bottom electrode can heat and melt furnace load.
Product Specification
UHP 500 to700MM graphite electrode diameter and allowable deviation
UNIT (MM) | ||||
Name | Nominal Diameter | Actual | Actual | Nominal Length |
UHP Graphite electrode | 500 | 511 | 505 | 1800/2000/2200/2400 |
550 | 562 | 556 | 1800/2000/2200/2400/2700 | |
600 | 613 | 607 | 2000/2200/2400/2700/3000 | |
650 | 663 | 659 | 2200/2400/2700/3000 | |
700 | 714 | 710 | 2200/2400/2700/3000 | |
UHP 500 to700MM graphite electrode current load
Grade | Nominal Diameter | Allowable current | Current density | ||
AC | DC | AC | DC | ||
UHP | 500 | 40000～60000 | － | 20～30 | - |
550 | 45000～68000 | 49000～78000 | 18～28 | 20～32 | |
600 | 52000～81000 | 58000～93000 | 18～28 | 20～32 | |
650 | 60000～85000 | 64000～100000 | 18～28 | 20～32 | |
700 | 71000～100000 | 79000～120000 | 18～27 | 20～30 | |

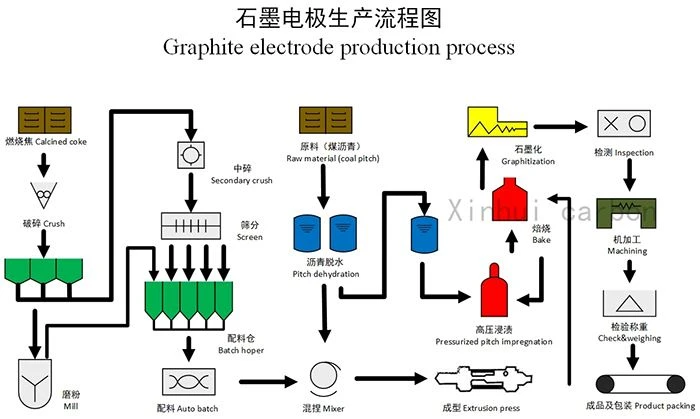

The production process
The features
1.High physical volume density
2.Super anti-press power
3.low rate of electric resistance
4.Strong anti-oxidizes
Certificate

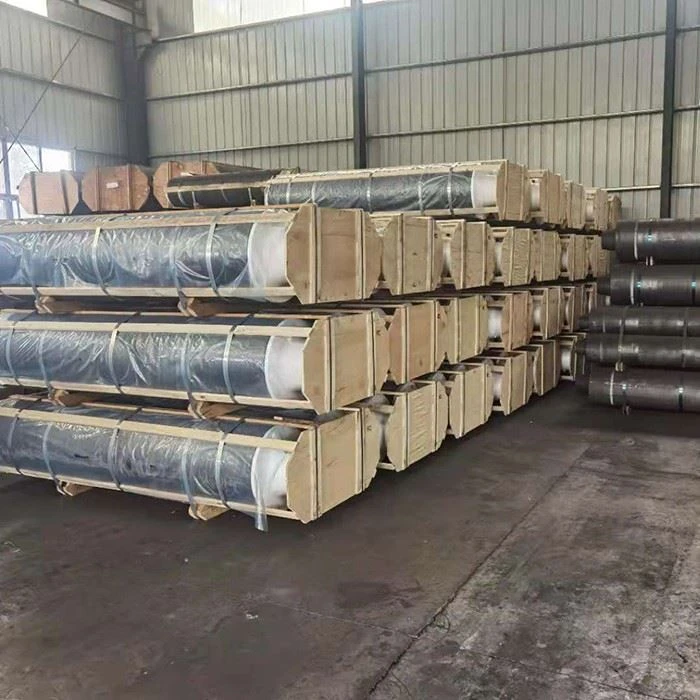

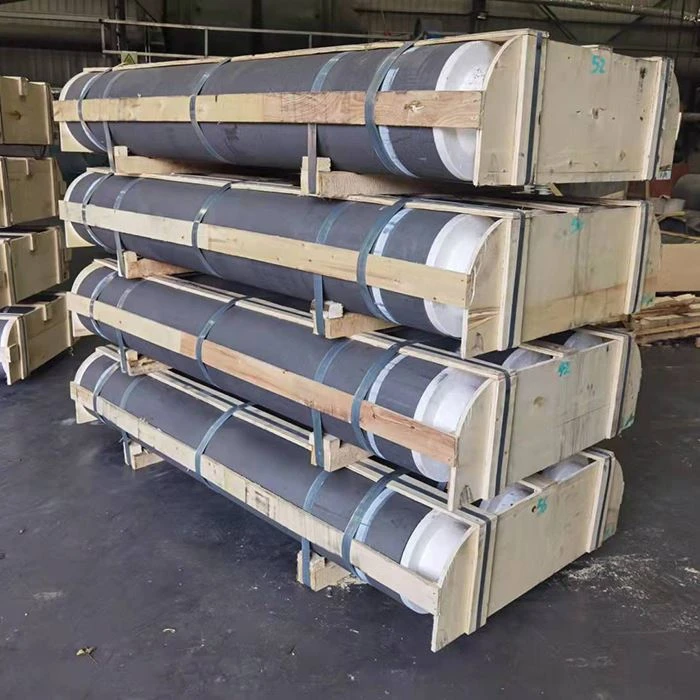

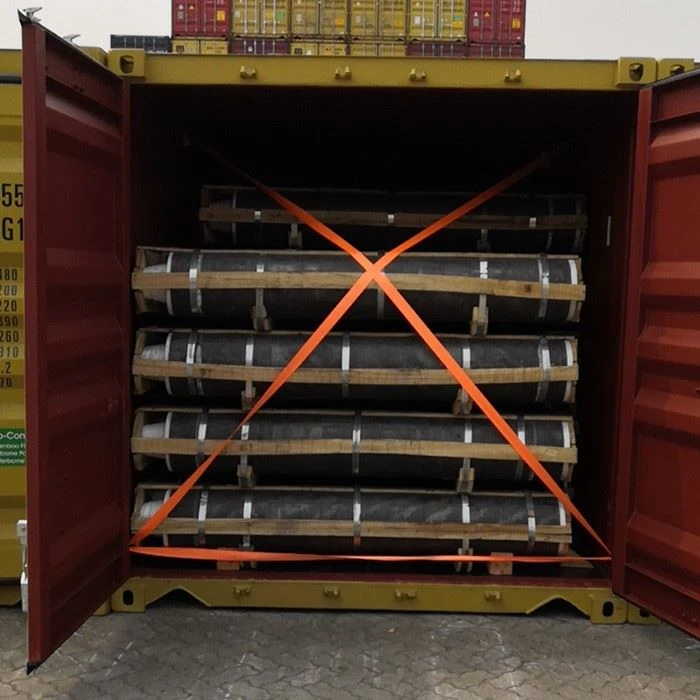

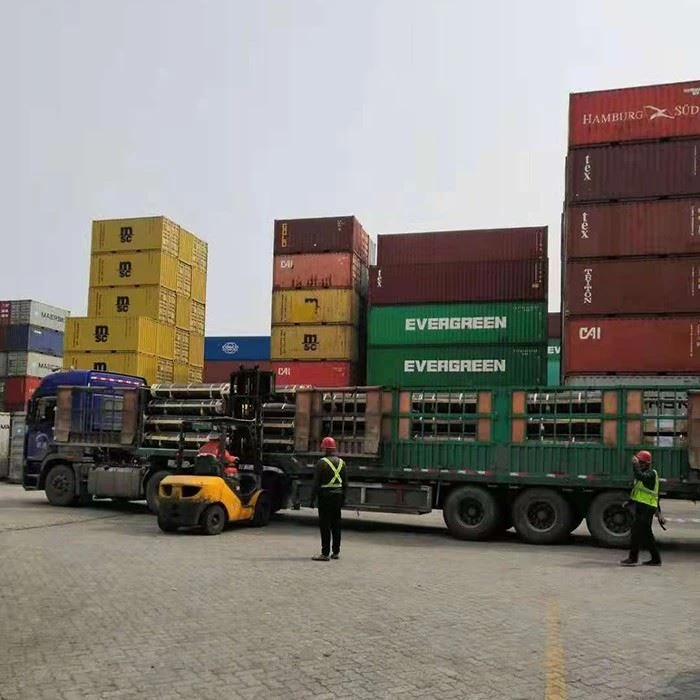

Packing and Shipping
Finished Graphite Electrodes are packed according to customers' requirements, shipped via containers or trucks, and provided with perfect after-sales service.
