UHP Graphite Electrode For Steelmaking
Products Description
UHP graphite electrode for steelmaking
UHP (Ultra High Power) graphite electrodes are a type of electrode made from high-grade petroleum coke and needle coke. They are characterized by their high strength, low electrical resistance, and excellent thermal conductivity, making them ideal for use in the steelmaking industry.
Products parameters
UHP graphite electrode Product Specification
UHP graphite electrode diameter and allowable deviation
|
UNIT (MM) |
||||
|
Name |
Nominal Diameter mm |
Actual Maximum Diameter mm |
Actual Minimum Diameter mm |
Nominal Length mm |
|
UHP Graphite electrode |
300 |
307 |
302 |
1600/1800/2000 |
|
350 |
357 |
352 |
1600/1800/2000 |
|
|
400 |
409 |
403 |
1600/1800/2000/2200 |
|
|
450 |
460 |
454 |
1600/1800/2000/2200 |
|
|
500 |
511 |
505
|
1800/2000/2200/2400 |
|
|
550 |
562 |
556 |
1800/2000/2200/2400/2700 |
|
|
600 |
613 |
607 |
2000/2200/2400/2700/3000 |
|
|
650 |
663 |
659 |
2200/2400/2700/3000 |
|
|
700 |
714 |
710 |
2200/2400/2700/3000 |
|
Physical & chemical properties of UHP graphite electrode and nipples
|
Item |
Unit |
Nominal diameter (mm) |
||||
|
UHP graphite electrode |
||||||
|
350～500 |
550～750 |
|||||
|
Guaranteed |
Typical |
Guaranteed |
Typical |
|||
|
lSR ≤ |
E |
UΩ*m |
6.3 |
5.0～6.0 |
5.8 |
4.8～5.5 |
|
N |
5.3 |
3.8～4.5 |
4.3 |
3.5～4.1 |
||
|
Flexural Strength ≥ |
E
|
MPA |
10.5 |
11.0～13.0 |
10.0 |
10.0～13.0 |
|
N |
20.0 |
20.0～25.0 |
23.0 |
24.0～30.0 |
||
|
Elastic modulus≤ |
E |
GPA |
14 |
8.0～12.0 |
14.0 |
7.0～10.0 |
|
N |
20.0 |
12.0～16.0 |
22.0 |
16.0～21.0 |
||
|
Bulk density ≥ |
E |
G/CM3 |
1.66 |
1.68～1.73
|
1.68 |
1.69～1.73 |
|
N |
1.75 |
1.76～1.82 |
1.78 |
1.79～1.84 |
||
|
CTE(100 ℃-600℃) |
E |
10-6/℃ |
1.5 |
1.3～1.5 |
1.5 |
1.3～1.5 |
|
N |
1.4 |
1.0～1.3 |
1.3 |
1.0～1.3 |
||
|
ASH ≤ |
% |
0.5 |
0.2～0.4 |
0.5 |
0.2～0.4 |
|

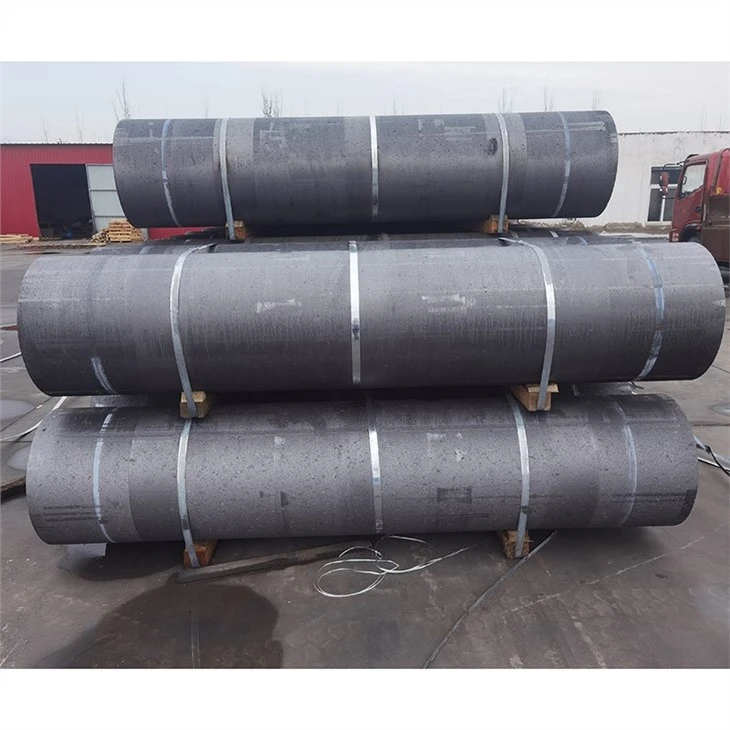

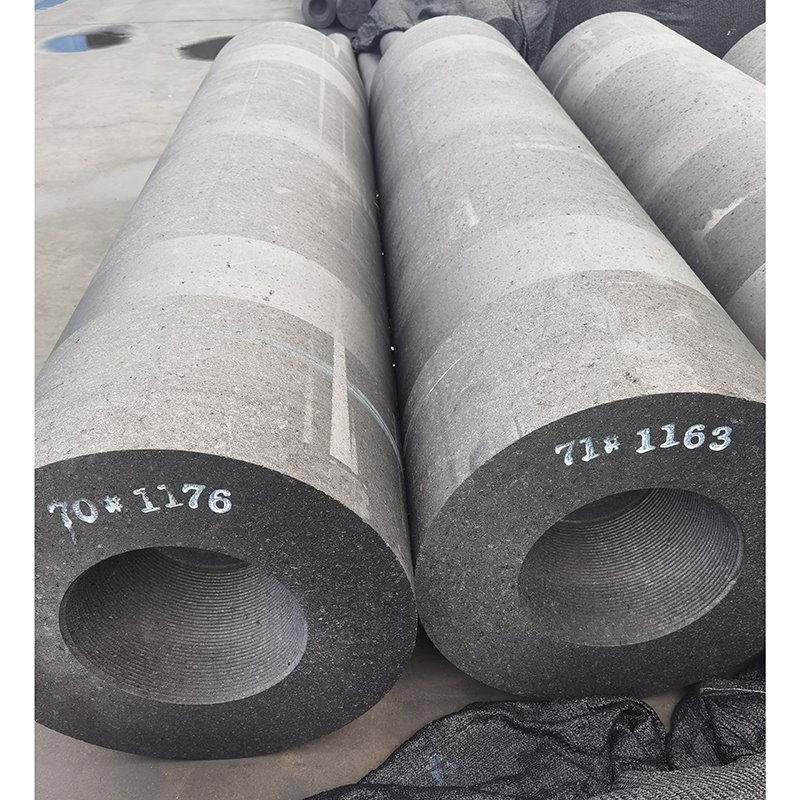

Product Picture

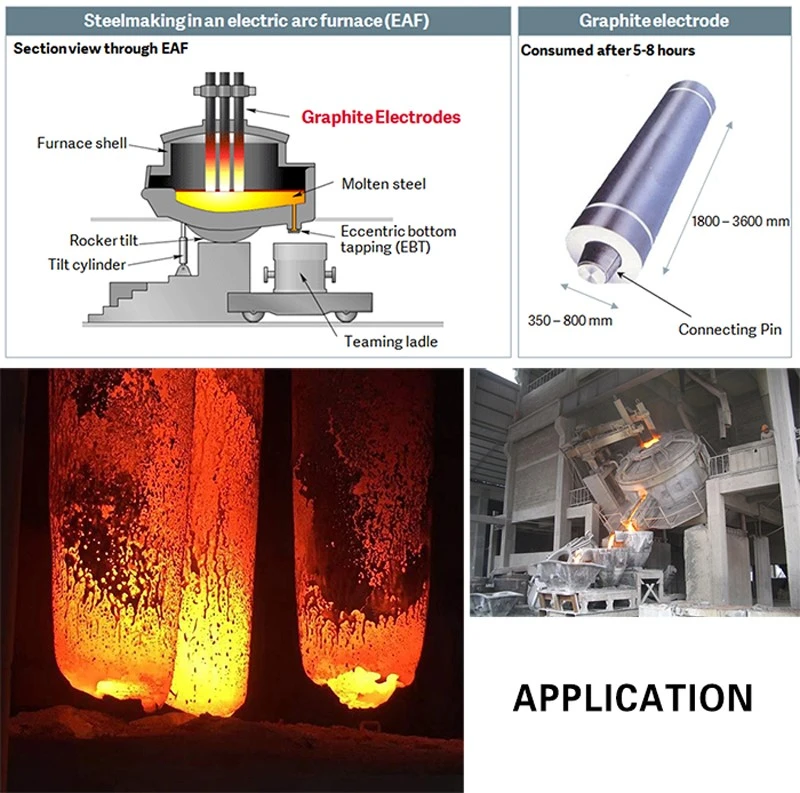

Applications
Electric arc furnaces (EAFs): UHP graphite electrodes are commonly used in EAFs for steelmaking. They are used to provide the high temperature required to melt and refine steel scrap.
Ladle furnaces (LFs): UHP graphite electrodes can also be used in LFs, which are used to refine and adjust the chemistry of the steel after it has been melted in the EAF.
Steel refining: UHP graphite electrodes are used for refining the steel and adjusting its chemical composition, as well as for removing impurities like sulfur, phosphorus, and nitrogen.
Steel alloy production: UHP graphite electrodes can also be used in the production of steel alloys, such as stainless steel, by adding various alloying elements like chromium, nickel, and molybdenum.
FAQ
1. Are you a Manufacturer or Trader?
We are manufacturer,we have our own factory.
2. When can I get the price?
We usually quote within 8 hours after getting your detailed requirements,like size,quantity etc.If it is an urgent order,you can call us directly.
3. What about the lead time for mass product?
The lead time is based on the quantity, about 7-12days.For graphite product,apply Dual-use items license need about 15-20 working days.
4. What is your terms of delivery?
We accept FOB,CFR,CIF,EXW,DAP,DDP,etc.You can choose the most convenient way for you.Besides that,we can also shipping by Air and Express.
5. Do you provide samples?
Yes,samples are available for you.
6. Product packaging?
We are packed in wooden cases,or according to your requirements.
