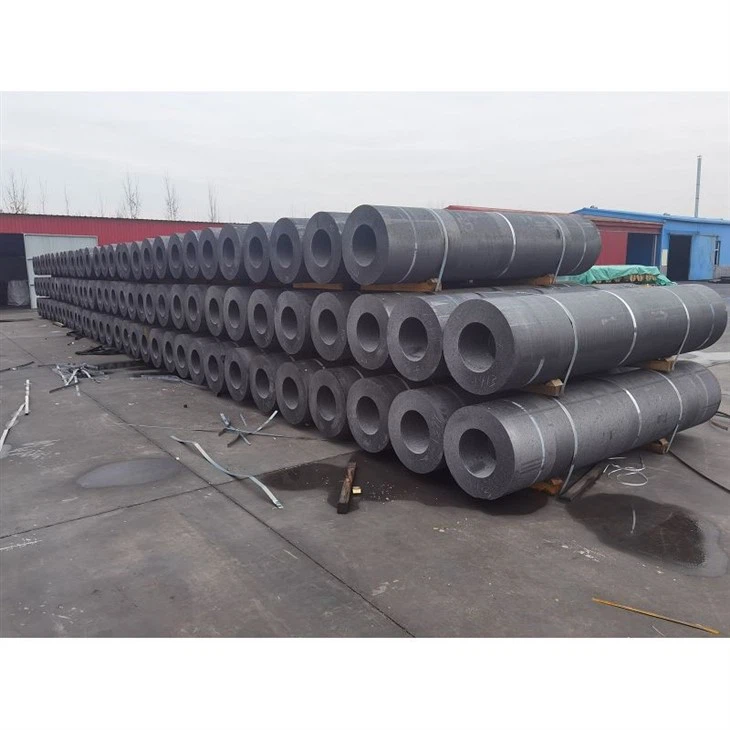

Low-resistance Graphite Electrodes For Metallurgical Furnaces

Low-resistance Graphite Electrodes For Metallurgical Furnaces

Low-resistance graphite electrodes are a kind of high-quality, artificial graphite material that is used in metallurgical furnaces for many applications. These electrodes are designed to have a low electrical resistance and which means that they can conduct more electricity and produce more heat, making them ideal for use in high-temperature and high-pressure circumstances.

Send Inquiry

Products Description

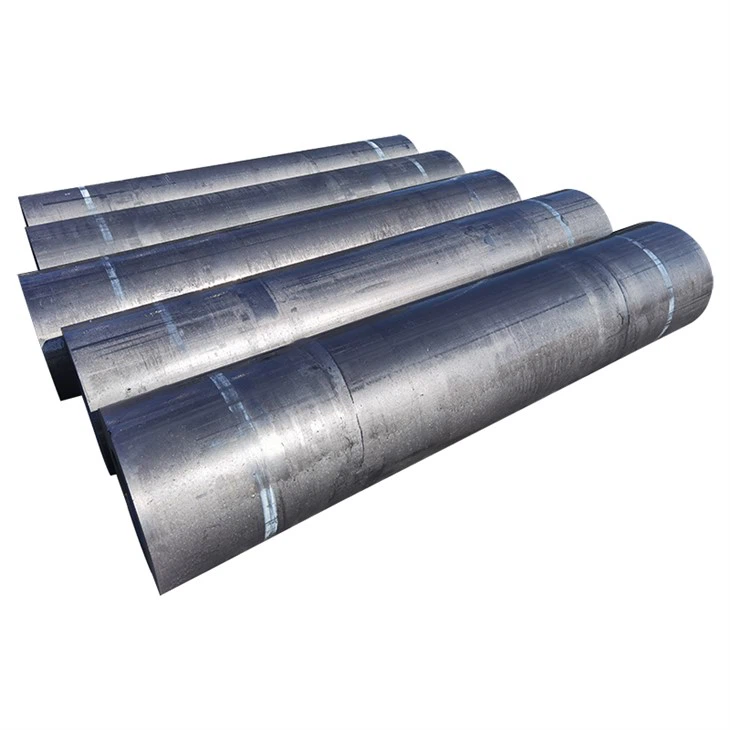

Low-resistance graphite electrodes for metallurgical furnaces

Products parameters

Graphite Electrodes diameter and allowable deviation

UNIT (MM)
Name	Nominal Diameter mm	Actual Maximum Diameter mm	Actual Minimum Diameter mm	Nominal Length mm
UHP/HP Graphite electrode	100	102	107	1700/1800/1900/2700
	150	152	157	1600/1800/1900
	200	205	202	1600/1800/1900
	250	256	251	1600/1800/1900
	300	307	302	1600/1800/2000
	350	358	352	1600/1800/2000
	400	409	403	1600/1800/2000/2200
	450	460	454	1600/1800/2000/2200
	500	511	505	1800/2000/2200/2400
	550	562	556	1800/2000/2200/2400/2700
	600	613	607	2000/2200/2400/2700
	650	663	659	2000/2200/2400/2700
	700	714	710	2000/2200/2400/2700
	750	765	761	2000/2200/2400/2700

Graphite electrode technical parameters

Item		Unit	RP		HP		UHP
			≤∅400	≥∅450	≤∅400	≥∅450	≤∅400	≥∅450
Electric Resistivity	Electrode	μΩ*m	≤8.5	≤9.0	≤6.0	≤6.5	≤5.0	≤5.5
	Nipple		≤6.5	≤6.5	≤5.5	≤5.5	≤4.5	≤4.5
Transverse Strength	Electrode	MPa	≥8.0	≥7.0	≥10.5	≥10.5	≥15.0	≥15.0
	Nipple		≥16.0	≥16.0	≥20.0	≥20.0	≥22.0	≥22.0
Young’s Modulus	Electrode	Gpa	≤9.3		≤12.0		≤14.0
	Nipple		≤14.0		≤16.0		≤18.0
Bulk Density	Electrode	g/cm³	≥1.54		≥1.65		≥1.68
	Nipple		≥1.69		≥1.73		≥1.76
Coefficient of Termal Expansion (100℃﹣600℃)	Electrode	100^-6/℃	≤2.5		≤2.0		≤1.5
	Nipple		≤2.0		≤1.6		≤1.2
Ash		%	≤0.3		≤0.2		≤0.2

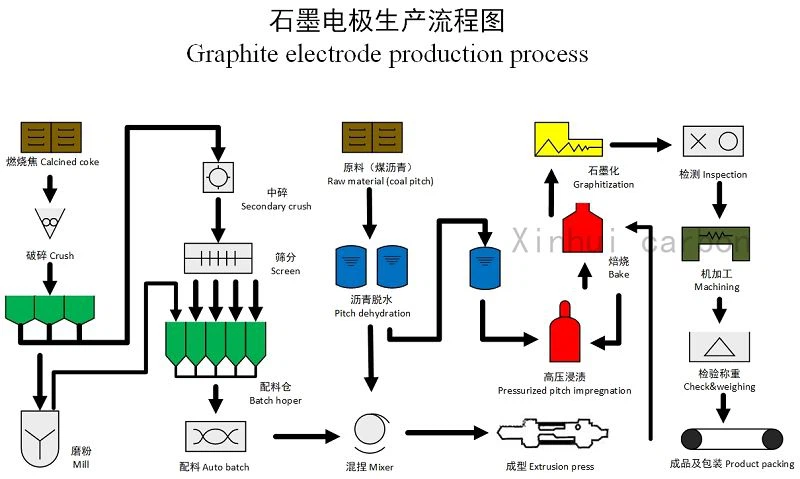

Graphite Electrode Production Process

1 1001

1 2

Applications

Steel making: Low-resistance graphite electrodes are used widely in steel making furnaces and where they are used to melt scrap metal and other raw materials to produce high-quality steel.

Aluminum smelting: Graphite electrodes with low resistance are also used in aluminum smelting furnaces and where they are used to conduct electricity and generate the high temperatures needed to melt and refine aluminum.

Copper smelting: Low-resistance graphite electrodes are used in copper smelting furnaces,too, where they facilitate the melting and refining of copper and other metals.

Iron smelting: During the process of iron smelting, low-resistance graphite electrodes are used to make molten iron from iron ore.

Packing and shipping of RP graphite electrode

Packing and Shipping

Finished Graphite Electrodes are packed according to customers' requirements, shipped via containers or trucks, and provided with perfect after-sales service.
