150mm HP Graphite Electrode For Glass Manufacturing
Products Description
150mm HP graphite electrode for glass manufacturing
HP graphite electrodes are commonly used in glass manufacturing. The 150mm HP graphite electrode can be used as a heating element in the process of melting and refining glass. The high power and low resistance of the electrode allow for efficient energy transfer and heating of the glass mixture. Additionally, HP graphite electrodes can be used in the production of specialty glasses, such as borosilicate glass, which requires high temperatures for melting and refining.
Products parameters
|
UNIT (MM) |
||||
|
Name |
Nominal Diameter mm |
Actual Maximum Diameter mm |
Actual Minimum Diameter mm |
Nominal Length mm |
|
HP Graphite electrode |
100 |
102 |
107 |
1700/1800/1900/2700 |
|
150 |
152 |
157 |
1700/1800/1900 |
|
|
200 |
205 |
202 |
1600/1800/1900 |
|
|
250 |
256 |
251 |
1600/1800/1900 |
|
|
300 |
307 |
302 |
1600/1800/2000 |
|
|
350 |
358 |
352 |
1600/1800/2000 |
|
|
400 |
409 |
403 |
1600/1800/2000/2200 |
|
|
450 |
460 |
454 |
1600/1800/2000/2200 |
|
|
500 |
511 |
505 |
1800/2000/2200/2400 |
|
|
550 |
562 |
556 |
1800/2000/2200/2400/2700 |
|
|
600 |
613 |
607 |
2000/2200/2400/2700 |
|
|
650 |
663 |
659 |
2000/2200/2400/2700 |
|
|
700 |
714 |
710 |
2000/2200/2400/2700 |
|
|
750 |
765 |
761 |
2000/2200/2400/2700 |
|
HP Graphite electrode Recommended tightening torque
|
Electrode diameter mm |
Torque N.M |
|
300 |
900 |
|
350 |
1300 |
|
400 |
1550 |
|
450 |
1850 |
|
500 |
2400 |
|
550 |
2750 |
|
600 |
3800 |
|
650 |
4300 |
|
700 |
5200 |
|
750 |
6800 |
HP Graphite electrode current load
|
Grade |
Nominal Diameter mm |
Allowable current A |
Current density A/c㎡ |
||
|
AC |
DC |
AC |
DC |
||
|
HP graphite electrode |
200 |
5500～9000 |
－ |
18～25 |
- |
|
250 |
8000～13000 |
- |
18～25 |
- |
|
|
300 |
13000～17400 |
- |
17～24 |
- |
|
|
350 |
17400～24000 |
- |
17～24 |
- |
|
|
400 |
21000～31000 |
- |
16～24 |
- |
|
|
450 |
25000～40000 |
－ |
15～24 |
－ |
|
|
500 |
30000～48000 |
－ |
15～24 |
－ |
|
|
550 |
34000～53000 |
－ |
15～24 |
－ |
|
|
600 |
38000～58000 |
－ |
13～21 |
－ |
|
|
650 |
41000～65000 |
－ |
12～20 |
－ |
|
|
700 |
45000～72000 |
－ |
12～19 |
－ |
|

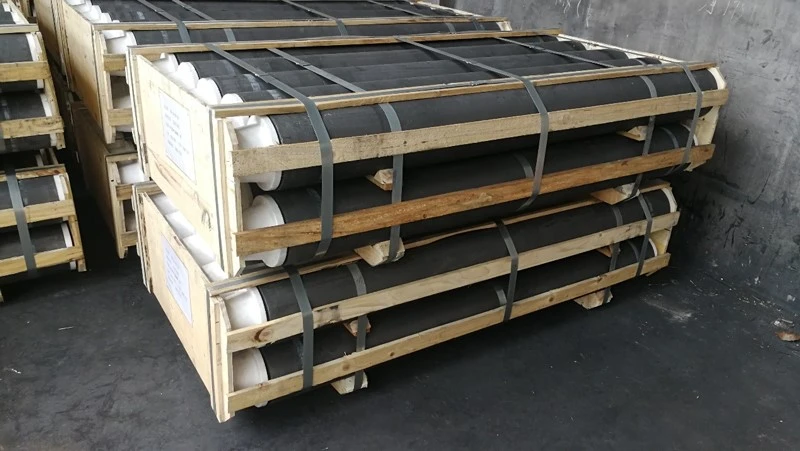

Product Picture
HP Graphite electrode Application
Semiconductor production: HP graphite electrodes are used in the production of semiconductor materials such as silicon and germanium.
Chemical industry: HP graphite electrodes are used in chemical processes such as the production of chlorine and caustic soda.
Iron and steel industry: HP graphite electrodes are used in the production of iron and steel in electric arc furnaces.
Non-ferrous metals production: HP graphite electrodes are used in the production of non-ferrous metals such as aluminum and copper in electric arc furnaces.
HP Graphite electrode certificate
HP Graphite electrode transportation requirement
1.Cover a rain-proof tarpaulin on the graphite electrodes in the course of long-distance transportation.
2.It is important to use a wire rope when lifting the wooden-packaged electrodes with a lifting crance. it is forbidden to lift the electrodes with the steel packaging belts on the wooden-packaged.
3.For the purpose of protecting the electrodes end and threads, it is not allowed to lift an electrode with a grappling iron hooking the electrode socket.
4.Put slightly when loading and unloading the nipple box so as to prevent damage to the threads.
