Graphite Electrode For Phosphorus Furnace
Products Description
Graphite electrode for phosphorus furnace
Graphite electrodes are often used if produce phosphorus and as an essential element used in many industrial process, too, fertilizers and detergents produce contained. Graphite electrodes play an important role when produce phosphorus, typically in electric furnace mode.
Products parameters
Graphite Electrodes diameter and allowable deviation
|
UNIT (MM) |
||||
|
Name |
Nominal Diameter mm |
Actual Maximum Diameter mm |
Actual Minimum Diameter mm |
Nominal Length mm |
|
UHP/HP Graphite electrode |
100 |
102 |
107 |
1700/1800/1900/2700 |
|
150 |
152 |
157 |
1600/1800/1900 |
|
|
200 |
205 |
202 |
1600/1800/1900 |
|
|
250 |
256 |
251 |
1600/1800/1900 |
|
|
300 |
307 |
302 |
1600/1800/2000 |
|
|
350 |
358 |
352 |
1600/1800/2000 |
|
|
400 |
409 |
403 |
1600/1800/2000/2200 |
|
|
450 |
460 |
454 |
1600/1800/2000/2200 |
|
|
500 |
511 |
505 |
1800/2000/2200/2400 |
|
|
550 |
562 |
556 |
1800/2000/2200/2400/2700 |
|
|
600 |
613 |
607 |
2000/2200/2400/2700 |
|
|
650 |
663 |
659 |
2000/2200/2400/2700 |
|
|
700 |
714 |
710 |
2000/2200/2400/2700 |
|
|
750 |
765 |
761 |
2000/2200/2400/2700 |
|
Graphite electrode technical parameters
|
Item |
Unit |
RP |
HP |
UHP |
||||
|
≤∅400 |
≥∅450 |
≤∅400 |
≥∅450 |
≤∅400 |
≥∅450 |
|||
|
Electric Resistivity |
Electrode |
μΩ*m |
≤8.5 |
≤9.0 |
≤6.0 |
≤6.5 |
≤5.0 |
≤5.5 |
|
Nipple |
≤6.5 |
≤6.5 |
≤5.5 |
≤5.5 |
≤4.5 |
≤4.5 |
||
|
Transverse Strength |
Electrode |
MPa |
≥8.0 |
≥7.0 |
≥10.5 |
≥10.5 |
≥15.0 |
≥15.0 |
|
Nipple |
≥16.0 |
≥16.0 |
≥20.0 |
≥20.0 |
≥22.0 |
≥22.0 |
||
|
Young’s Modulus |
Electrode |
Gpa |
≤9.3 |
≤12.0 |
≤14.0 |
|||
|
Nipple |
≤14.0 |
≤16.0 |
≤18.0 |
|||||
|
Bulk Density |
Electrode |
g/cm3 |
≥1.54 |
≥1.65 |
≥1.68 |
|||
|
Nipple |
≥1.69 |
≥1.73 |
≥1.76 |
|||||
|
Coefficient of Termal Expansion (100℃﹣600℃) |
Electrode |
100-6/℃ |
≤2.5 |
≤2.0 |
≤1.5 |
|||
|
Nipple |
≤2.0 |
≤1.6 |
≤1.2 |
|||||
|
Ash |
% |
≤0.3 |
≤0.2 |
≤0.2 |
||||

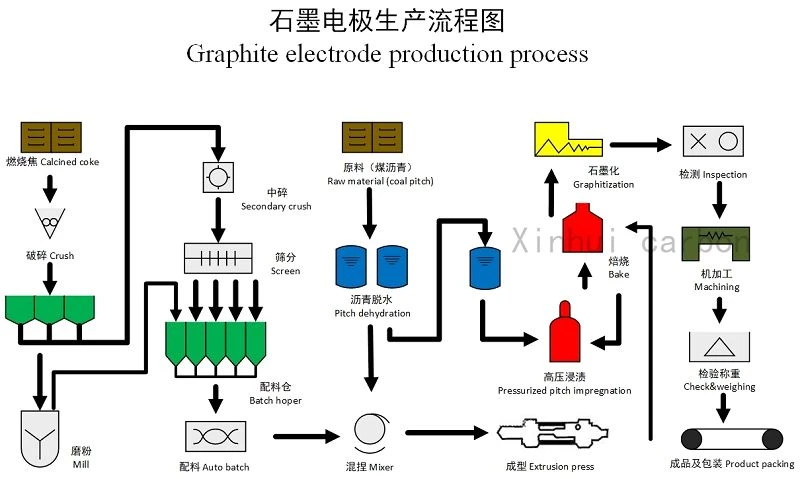

Graphite Electrode Production Process
Applications
Electric arc furnaces: They are used in electric arc furnaces to produce phosphorus through reacting phosphate rock with carbon in electric arc. The electric arc furnace use graphite electrodes to produce heat and melt the mixture of phosphate rock and carbon and enhance the chemical reaction.
Refining the phosphorus: After reaction between phosphate rock and carbon, the mixture matter need to be refined to clear up impurities and up to the desired purity of phosphorus.They are used to adjust the temperature and chemistry of the molten phosphorus to boost the refining process.

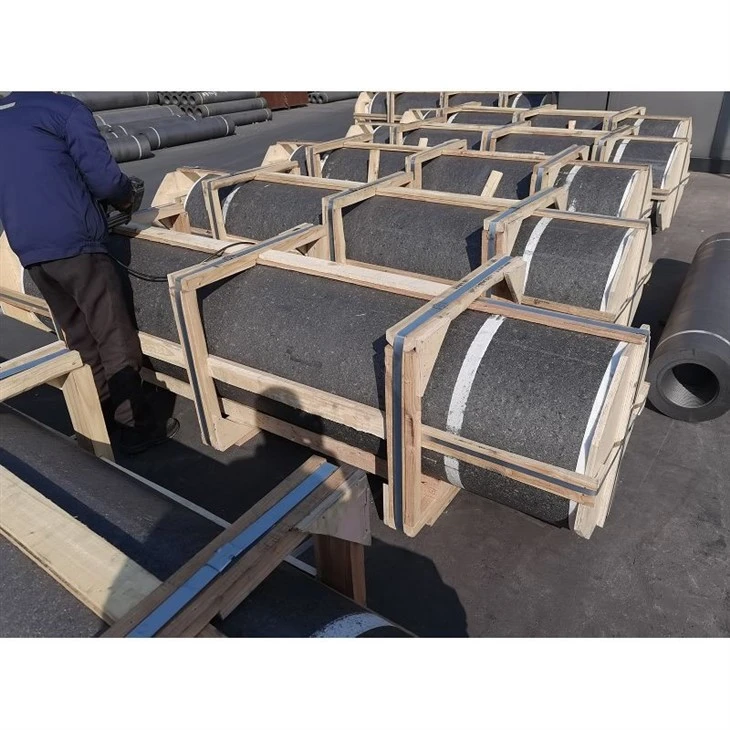

Packing and Shipping
Finished Graphite Electrodes are packed according to customers' requirements, shipped via containers or trucks, and provided with perfect after-sales service.
FAQ
1. Are you a Manufacturer or Trader?
We are manufacturer,we have our own factory.
2. When can I get the price?
We usually quote within 8 hours after getting your detailed requirements,like size,quantity etc.If it is an urgent order,you can call us directly.
3. What about the lead time for mass product?
The lead time is based on the quantity, about 7-12days.For graphite product,apply Dual-use items license need about 15-20 working days.
4. What is your terms of delivery?
We accept FOB,CFR,CIF,EXW,DAP,DDP,etc.You can choose the most convenient way for you.Besides that,we can also shipping by Air and Express.
5. Do you provide samples?
Yes,samples are available for you.
6. Product packaging?
We are packed in wooden cases,or according to your requirements.
