Larg-Sized Diameter Carbon Electrode
Larg-Sized diameter carbon electrode

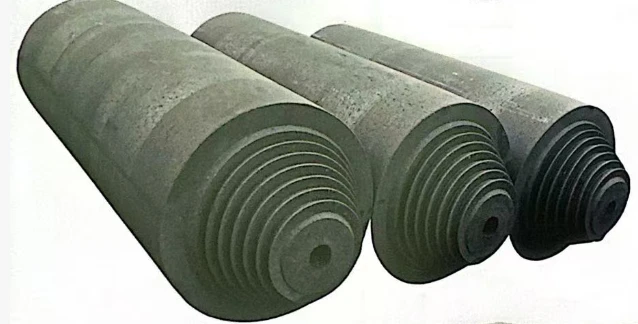

Large-sized diameter carbon electrode is a new generation electrode product we research. This is one kind of environmental protection product, It can be classified to S grade and G grade, It is applied for iron and steel smelting, industrial silicon, yellow phosphorous, ferroalloy, titania slag, brown fused alumina etc submerged - arc furnace melting production.
Product Specifications
|
Item |
S-grade carbon electrode |
G-grade carbon electrode |
||||
|
Φ500-Φ700 |
Φ750-Φ960 |
Φ1020-Φ1400 |
Φ500-Φ700 |
Φ750-Φ960 |
Φ1020-Φ1400 |
|
|
μΩ*m Resistivity |
≤40 |
≤40 |
≤40 |
≤33 |
≤33 |
≤35 |
|
g/cm3 Bulk Density |
≥1.60 |
≥1.60 |
≥1.60 |
≥1.60 |
≥1.60 |
≥1.60 |
|
Mpa Bending Strength |
3.5-7.5 |
3.5-7.5 |
3.5-7.0 |
4.0-7.5 |
4.0-7.5 |
4.0-7.5 |
|
Mpa Compressive strength |
≥20.0 |
≥20.0 |
≥19.0 |
≥20.0 |
≥20.0 |
≥19.0 |
|
10-6 / ℃ CTE |
3.2-4.8 |
3.2-4.8 |
3.2-4.8 |
3.0-4.6 |
3.0-4.6 |
3.0-4.6 |
|
% Ash |
≤2.5 |
≤2.5 |
≤2.5 |
≤2.0 |
≤2.0 |
≤2.0 |
Technical Specification of Carbon Electrode
|
Electrode diameter(mm) |
S |
G |
||
|
Allowable current load(A) |
Current density(A/cm2) |
Allowable current load(A) |
Current density(A/cm2) |
|
|
780 |
31500 |
6.6 |
36200 |
7.6 |
|
800 |
33100 |
6.6 |
38100 |
7.6 |
|
850 |
37400 |
6.6 |
43100 |
7.6 |
|
870 |
38000 |
6.4 |
43900 |
7.4 |
|
900 |
40600 |
6.4 |
47000 |
7.4 |
|
920 |
42500 |
6.4 |
49100 |
7.4 |
|
960 |
46300 |
6.4 |
53500 |
7.4 |
|
1005 |
49900 |
6.3 |
57000 |
7.2 |
|
1020 |
50600 |
6.2 |
57900 |
7.1 |
|
1060 |
54600 |
6.2 |
62600 |
7.1 |
|
1100 |
57900 |
6.1 |
66400 |
7.0 |
|
1146 |
62800 |
6.1 |
72100 |
7.0 |
|
1205 |
69500 |
6.1 |
79800 |
7.0 |
|
1250 |
71100 |
5.8 |
82200 |
6.7 |
|
1272 |
73700 |
5.8 |
85100 |
6.7 |
|
1305 |
74900 |
5.6 |
86900 |
6.5 |
|
1321 |
76600 |
5.6 |
88900 |
6.5 |
|
1355 |
77700 |
5.4 |
89400 |
6.2 |
|
1400 |
80000 |
5.2 |
92300 |
6.0 |
