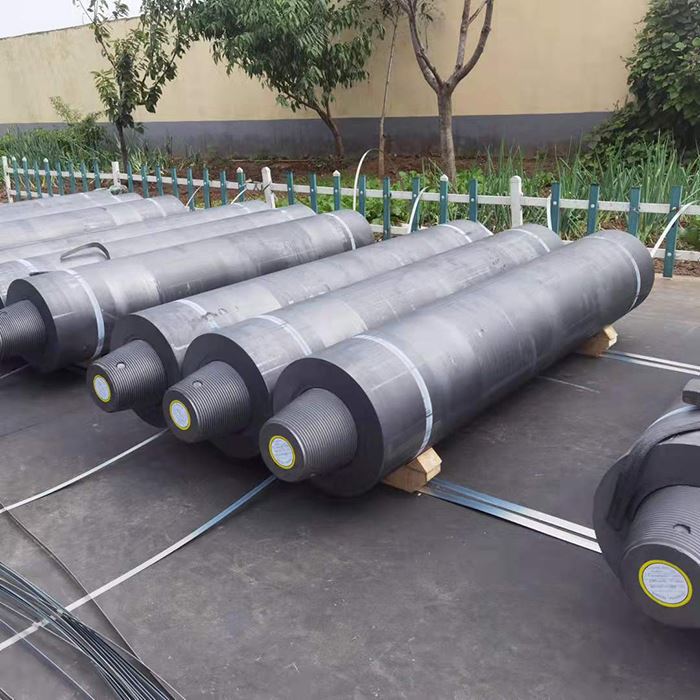

HP Graphite Electrode for Steel Smelting
Electric furnace steelmaking mill is the largest user of graphite electrodes. Graphite electrodes used in steelmaking accounts for 70%-80% of the total graphite electrodes production. Graphite electrodes are used to conduct electric current into electric furnace, electric arcs generated between electrodes end and loaded materials can release large amount of heat for high temperature smelting.
Product Specification
HP Graphite Electrode diameter and allowable deviation
UNIT (MM) | ||||
Name | Nominal Diameter | Actual | Actual | Nominal Length |
HP Graphite electrode | 200 | 205 | 202 | 1600/1800/1900 |
250 | 256 | 251 | 1600/1800/1900 | |
300 | 307 | 302 | 1600/1800/2000 | |
350 | 358 | 352 | 1600/1800/2000 | |
400 | 409 | 403 | 1600/1800/2000/2200 | |
450 | 460 | 454 | 1600/1800/2000/2200 | |
500 | 511 | 505 | 1800/2000/2200/2400 | |
550 | 562 | 556 | 1800/2000/2200/2400/2700 | |
600 | 613 | 607 | 2000/2200/2400/2700 | |
650 | 663 | 659 | 2000/2200/2400/2700 | |
700 | 714 | 710 | 2000/2200/2400/2700 | |
750 | 765 | 761 | 2000/2200/2400/2700 | |
HP Graphite electrode current load
Grade | Nominal Diameter | Allowable current | Current density | ||
AC | DC | AC | DC | ||
HP | 200 | 5500～9000 | － | 18～25 | - |
250 | 8000～13000 | - | 18～25 | - | |
300 | 13000～17400 | - | 17～24 | - | |
350 | 17400～24000 | - | 17～24 | - | |
400 | 21000～31000 | - | 16～24 | - | |
450 | 25000～40000 | － | 15～24 | － | |
500 | 30000～48000 | － | 15～24 | － | |
550 | 34000～53000 | － | 15～24 | － | |
600 | 38000～58000 | － | 13～21 | － | |
650 | 41000～65000 | － | 12～20 | － | |
700 | 45000～72000 | － | 12～19 | － | |

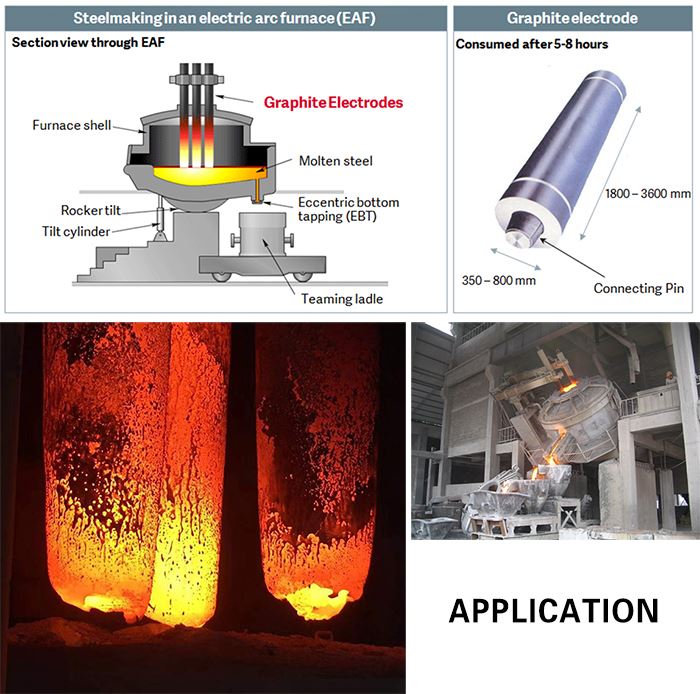

Application
Auality control
Packing and Shipping
Finished Graphite Electrodes are packed according to customers' requirements, shipped via containers or trucks, and provided with perfect after-sales service.

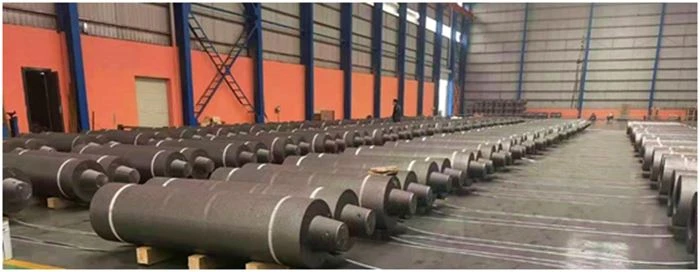

Packing

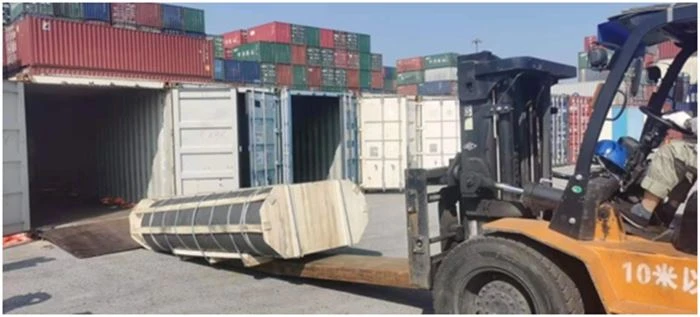

Shipping
