Graphite Electrodes For Foundries
Products Description

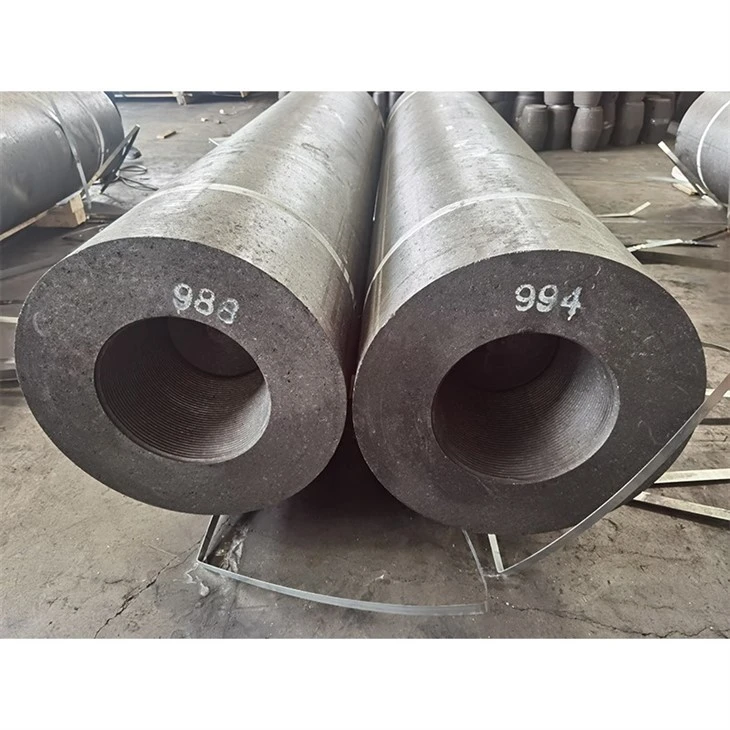

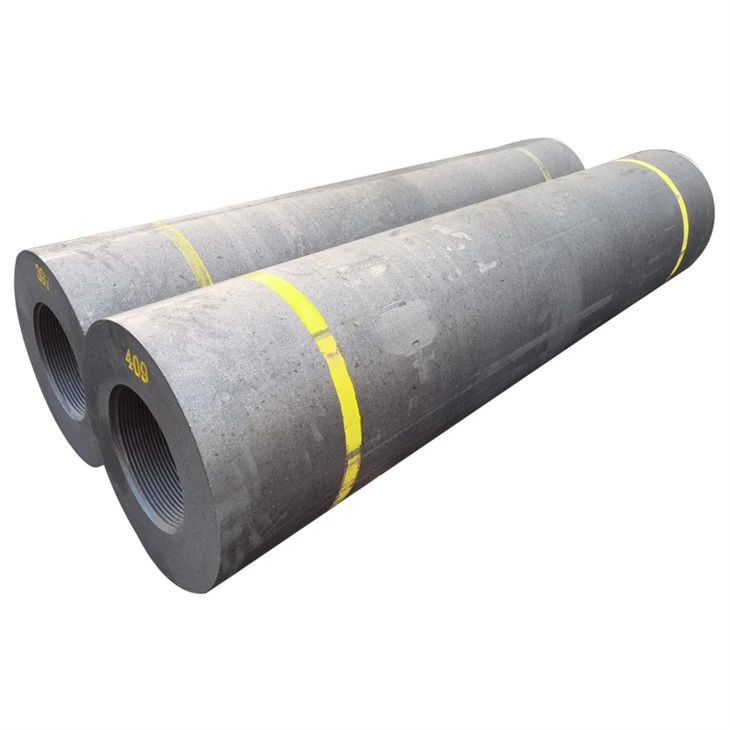

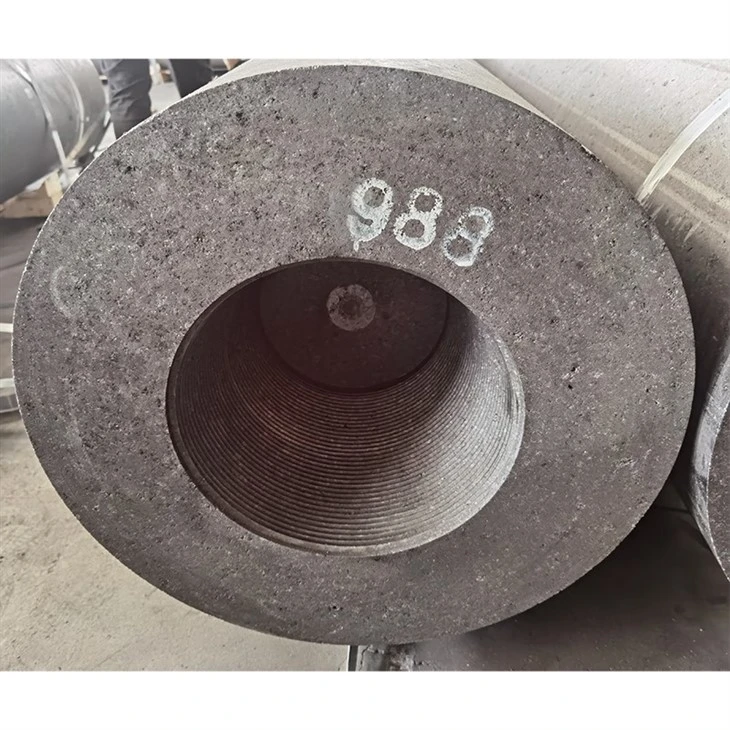

Graphite electrodes for foundries
Graphite electrodes are used widely in foundries for melting and casting metals, and because of they can offer sound electrical conductivity, heat resistance, and durability. Foundries use many kinds of graphite electrodes depending on their specific needs, for instance,low-resistance graphite electrodes or high-density graphite electrodes.
Products parameters

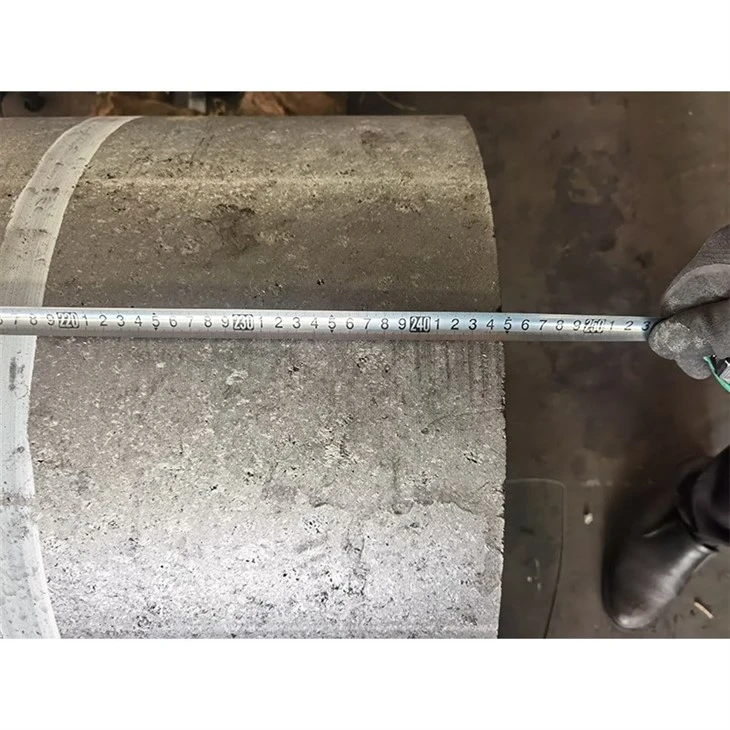

Graphite Electrodes diameter and allowable deviation
|
UNIT (MM) |
||||
|
Name |
Nominal Diameter mm |
Actual Maximum Diameter mm |
Actual Minimum Diameter mm |
Nominal Length mm |
|
UHP/HP Graphite electrode |
100 |
102 |
107 |
1700/1800/1900/2700 |
|
150 |
152 |
157 |
1600/1800/1900 |
|
|
200 |
205 |
202 |
1600/1800/1900 |
|
|
250 |
256 |
251 |
1600/1800/1900 |
|
|
300 |
307 |
302 |
1600/1800/2000 |
|
|
350 |
358 |
352 |
1600/1800/2000 |
|
|
400 |
409 |
403 |
1600/1800/2000/2200 |
|
|
450 |
460 |
454 |
1600/1800/2000/2200 |
|
|
500 |
511 |
505 |
1800/2000/2200/2400 |
|
|
550 |
562 |
556 |
1800/2000/2200/2400/2700 |
|
|
600 |
613 |
607 |
2000/2200/2400/2700 |
|
|
650 |
663 |
659 |
2000/2200/2400/2700 |
|
|
700 |
714 |
710 |
2000/2200/2400/2700 |
|
|
750 |
765 |
761 |
2000/2200/2400/2700 |
|
Graphite electrode technical parameters
|
Item |
Unit |
RP |
HP |
UHP |
||||
|
≤∅400 |
≥∅450 |
≤∅400 |
≥∅450 |
≤∅400 |
≥∅450 |
|||
|
Electric Resistivity |
Electrode |
μΩ*m |
≤8.5 |
≤9.0 |
≤6.0 |
≤6.5 |
≤5.0 |
≤5.5 |
|
Nipple |
≤6.5 |
≤6.5 |
≤5.5 |
≤5.5 |
≤4.5 |
≤4.5 |
||
|
Transverse Strength |
Electrode |
MPa |
≥8.0 |
≥7.0 |
≥10.5 |
≥10.5 |
≥15.0 |
≥15.0 |
|
Nipple |
≥16.0 |
≥16.0 |
≥20.0 |
≥20.0 |
≥22.0 |
≥22.0 |
||
|
Young’s Modulus |
Electrode |
Gpa |
≤9.3 |
≤12.0 |
≤14.0 |
|||
|
Nipple |
≤14.0 |
≤16.0 |
≤18.0 |
|||||
|
Bulk Density |
Electrode |
g/cm3 |
≥1.54 |
≥1.65 |
≥1.68 |
|||
|
Nipple |
≥1.69 |
≥1.73 |
≥1.76 |
|||||
|
Coefficient of Termal Expansion (100℃﹣600℃) |
Electrode |
100-6/℃ |
≤2.5 |
≤2.0 |
≤1.5 |
|||
|
Nipple |
≤2.0 |
≤1.6 |
≤1.2 |
|||||
|
Ash |
% |
≤0.3 |
≤0.2 |
≤0.2 |
||||
Applications
Steel production: When produce steel graphite electrodes are widely used in foundries.The electrodes are used to melt scrap metal, pig iron, and other raw materials to yield molten steel that can be poured into molds to produce steel castings.
Iron casting: Graphite electrodes are also used in foundries while produce iron castings. The electrodes are used to melt iron scrap and pig iron and which are then poured into molds to offer many kinds of iron products, engine blocks, brake rotors, and other components included.
Aluminum casting: During the process of aluminum castings,graphite electrodes are used in foundries. The electrodes provide electrical conductivity and produce high temperatures required to melt aluminum scrap and other raw materials.
Brass and bronze casting: While produce brass and bronze castings, graphite electrodes are used in foundries and which are then poured into molds to produce various products, such as plumbing fixtures, musical instruments, and decorative items.
Packing and Shipping
Finished Graphite Electrodes are packed according to customers' requirements, shipped via containers or trucks, and provided with perfect after-sales service.
