.Graphite Electrode For Copper
Graphite electrode for copper
smelting to transfer electrical energy from the power source to the copper melt in the furnace. They are also used to support and position the anodes in the furnace.
|
Grade |
Nominal Diameter mm |
Allowable current A |
Current density A/c㎡ |
||
|
|
|
AC |
DC |
AC |
DC |
|
HP graphite electrode |
200 |
5500～9000 |
－ |
18～25 |
- |
|
|
250 |
8000～13000 |
- |
18～25 |
- |
|
|
300 |
13000～17400 |
- |
17～24 |
- |
|
|
350 |
17400～24000 |
- |
17～24 |
- |
|
|
400 |
21000～31000 |
- |
16～24 |
- |
|
|
450 |
25000～40000 |
－ |
15～24 |
－ |
|
|
500 |
30000～48000 |
－ |
15～24 |
－ |
|
|
550 |
34000～53000 |
－ |
15～24 |
－ |
|
|
600 |
38000～58000 |
－ |
13～21 |
－ |
|
|
650 |
41000～65000 |
－ |
12～20 |
－ |
|
|
700 |
45000～72000 |
－ |
12～19 |
－ |
Graphite electrodes are used in the electric furnace for copper scrap melting to produce new copper products such as wires, tubes, and sheets.
Graphite electrodes are used in the anode furnace of copper electrolysis to produce high-purity copper cathodes.
Graphite electrodes are used in the smelting furnace for copper concentrate refining, where the copper sulfide concentrate is melted and converted into blister copper.
NEEDLE COKE SPECIFICATIONS
|
ITEMS |
INDEX |
|
True density (g/cm3) ≥ |
2.13 |
|
Sulphur %（mass fraction）≤ |
0.4 |
|
Nitrogen%（mass fraction）≤ |
0.5 |
|
Volatiles%（mass fraction）≤ |
0.3 |
|
Ash content %（mass fraction）≤ |
0.2 |
|
Moisture %（mass fraction）≤ |
0.15 |
|
Coefficient of thermal expansion (greenhouse ~600℃）CET/10-6℃ ≤ |
1.0 |
|
Specific resistance （P）/(Ω*m) ≤ |
600 |
|
Tap density （1mm~2mm）/（g/cm3）≥ |
0.9 |
Quality Inspection
The processed Graphite Electrodes need to undergo various strict physical and chemical performance index tests and processing accuracy tests. xinhui carbon has a perfect material management system, with corresponding requirements for quality parameters from raw and auxiliary materials, semi-finished products to finished products, and prescribed values for all process control parameters affecting quality, and actual parameters are tested, archived, and analyzed. We have strict control and precise requirements on product quality, and try to consider every detail for our customers to ensure their reliability in the process of use.
Detection
Our company agree with and customers or customer authorization the third party come to our company for testing.

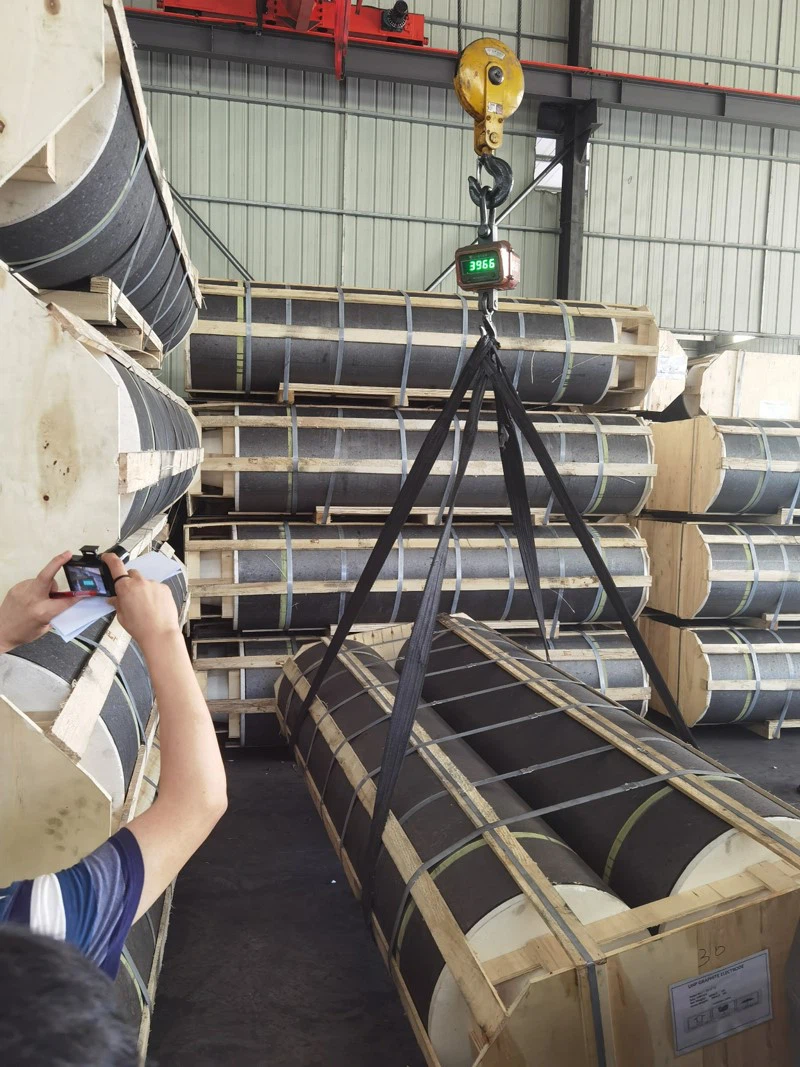

Graphite Electrodes Palletizing and Packing:
All electrodes are to be palletized on to one pair of wooden stringers complete with end caps, sombreros (or end covers), brand labels and electrode tags to form the most basic of pallet formations.
Summary of Materials:
Wooden stringers
Steel strapping
End caps and sombreros
Brand labels
Electrode identification tags
FAQ
1. Are you a Manufacturer or Trader?
We are manufacturer,we have our own factory.
2. When can I get the price?
We usually quote within 8 hours after getting your detailed requirements,like size,quantity etc.If it is an urgent order,you can call us directly.
3. What about the lead time for mass product?
The lead time is based on the quantity, about 7-12days.For graphite product,apply Dual-use items license need about 15-20 working days.
4. What is your terms of delivery?
We accept FOB,CFR,CIF,EXW,DAP,DDP,etc.You can choose the most convenient way for you.Besides that,we can also shipping by Air and Express.
5. Do you provide samples?
Yes,samples are available for you.
6. Product packaging?
We are packed in wooden cases,or according to your requirements.
