UHP Graphite Electrode For Ceramics Production
Products Description
UHP graphite electrode for ceramics production
UHP (Ultra High Power) graphite electrodes are a type of electrode made from high-quality needle coke and used in high-power and ultra-high-power electric arc furnaces. They are characterized by their superior electrical conductivity, thermal conductivity, and mechanical strength.
Products parameters
UHP graphite electrode Product Specification
UHP graphite electrode diameter and allowable deviation
|
UNIT (MM) |
||||
|
Name |
Nominal Diameter mm |
Actual Maximum Diameter mm |
Actual Minimum Diameter mm |
Nominal Length mm |
|
UHP Graphite electrode |
300 |
307 |
302 |
1600/1800/2000 |
|
350 |
357 |
352 |
1600/1800/2000 |
|
|
400 |
409 |
403 |
1600/1800/2000/2200 |
|
|
450 |
460 |
454 |
1600/1800/2000/2200 |
|
|
500 |
511 |
505
|
1800/2000/2200/2400 |
|
|
550 |
562 |
556 |
1800/2000/2200/2400/2700 |
|
|
600 |
613 |
607 |
2000/2200/2400/2700/3000 |
|
|
650 |
663 |
659 |
2200/2400/2700/3000 |
|
|
700 |
714 |
710 |
2200/2400/2700/3000 |
|
Physical & chemical properties of UHP graphite electrode and nipples
|
Item |
Unit |
Nominal diameter (mm) |
||||
|
UHP graphite electrode |
||||||
|
350～500 |
550～750 |
|||||
|
Guaranteed |
Typical |
Guaranteed |
Typical |
|||
|
lSR ≤ |
E |
UΩ*m |
6.3 |
5.0～6.0 |
5.8 |
4.8～5.5 |
|
N |
5.3 |
3.8～4.5 |
4.3 |
3.5～4.1 |
||
|
Flexural Strength ≥ |
E
|
MPA |
10.5 |
11.0～13.0 |
10.0 |
10.0～13.0 |
|
N |
20.0 |
20.0～25.0 |
23.0 |
24.0～30.0 |
||
|
Elastic modulus≤ |
E |
GPA |
14 |
8.0～12.0 |
14.0 |
7.0～10.0 |
|
N |
20.0 |
12.0～16.0 |
22.0 |
16.0～21.0 |
||
|
Bulk density ≥ |
E |
G/CM3 |
1.66 |
1.68～1.73
|
1.68 |
1.69～1.73 |
|
N |
1.75 |
1.76～1.82 |
1.78 |
1.79～1.84 |
||
|
CTE(100 ℃-600℃) |
E |
10-6/℃ |
1.5 |
1.3～1.5 |
1.5 |
1.3～1.5 |
|
N |
1.4 |
1.0～1.3 |
1.3 |
1.0～1.3 |
||
|
ASH ≤ |
% |
0.5 |
0.2～0.4 |
0.5 |
0.2～0.4 |
|

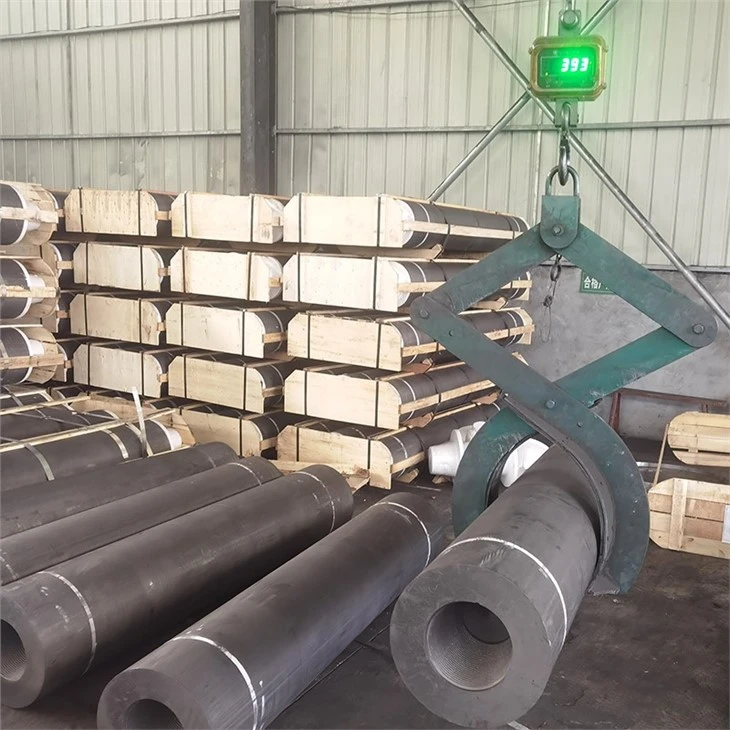

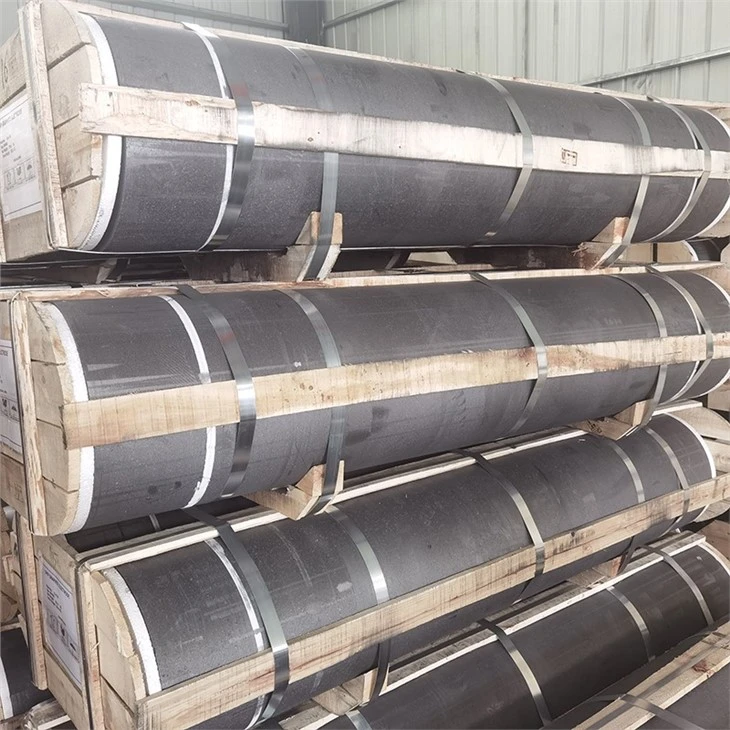

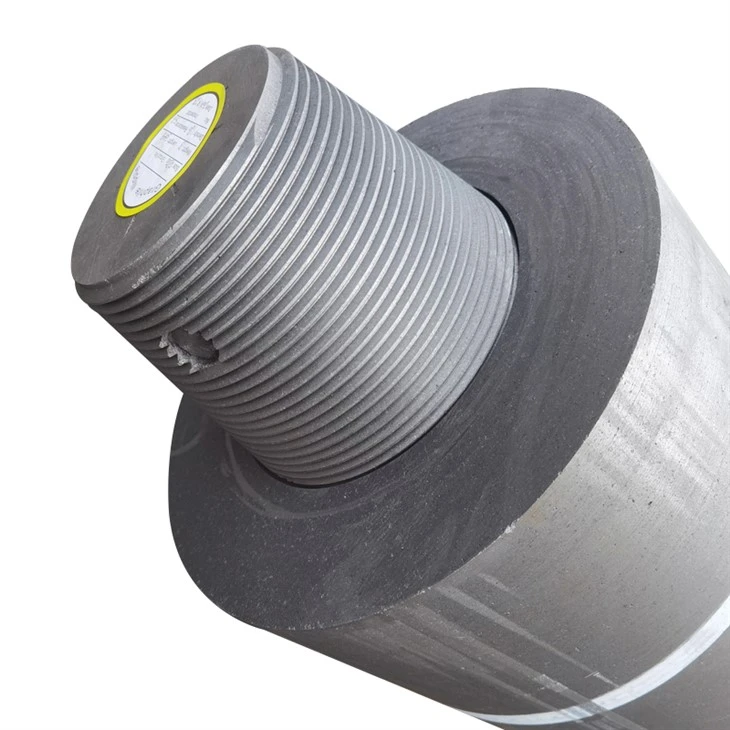

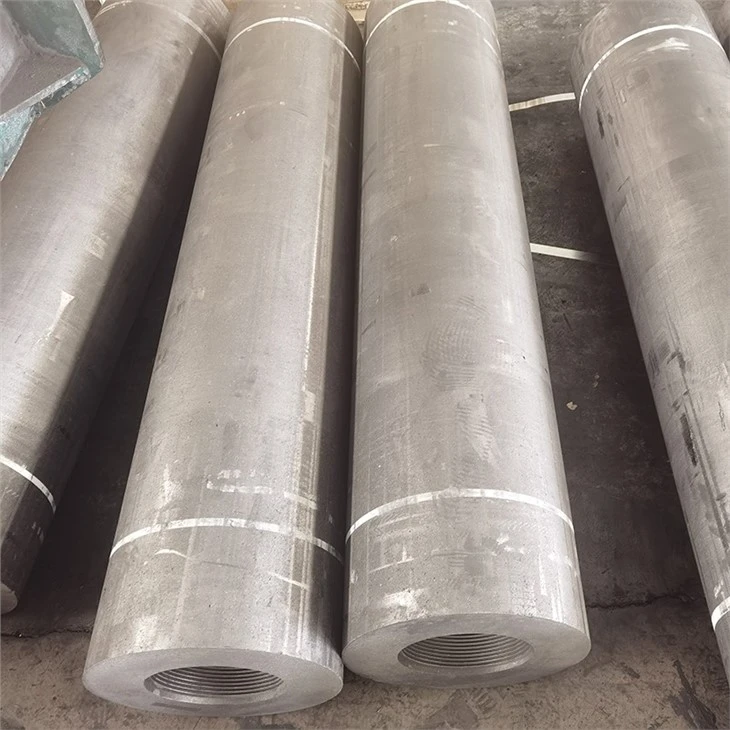

ProdSuct Picture
Applications

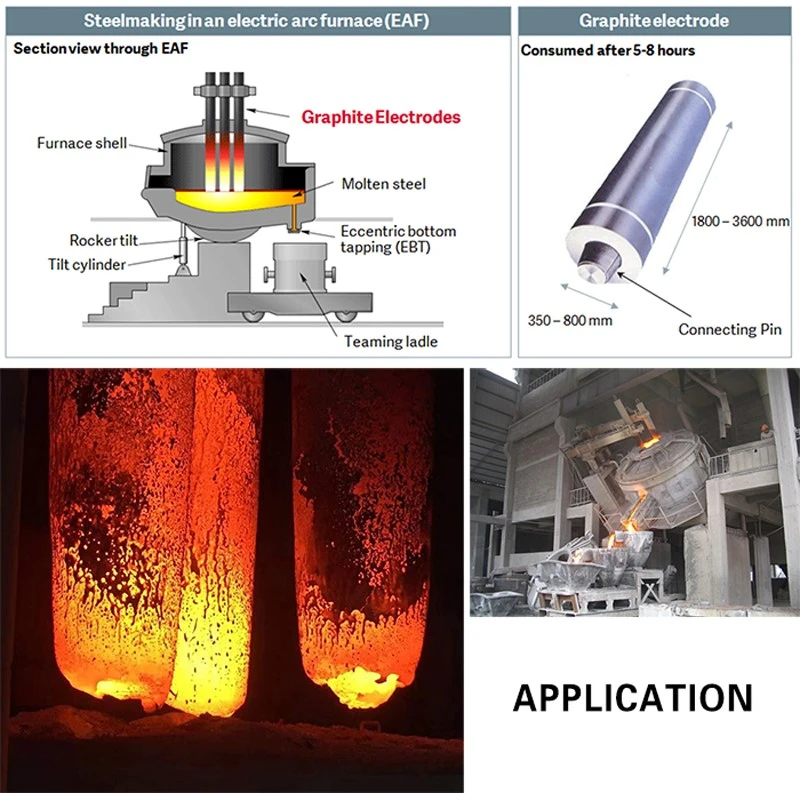

Steelmaking: UHP graphite electrodes are used in electric arc furnaces (EAFs) for steelmaking, where they provide high-performance melting and refining capabilities.
Silicon metal production: UHP graphite electrodes are used in electric smelting furnaces for the production of silicon metal, a critical material used in the production of semiconductors, solar cells, and other electronic devices.
Titanium dioxide production: UHP graphite electrodes are used in the production of titanium dioxide, a white pigment used in paints, coatings, and other industrial applications.
Graphite manufacturing: UHP graphite electrodes are used in the production of other graphite products, including graphite blocks, rods, and crucibles.
Ceramic production: UHP graphite electrodes are also used in the production of ceramic materials, such as silicon carbide and alumina, which are used in high-temperature applications.
FAQ
1. Are you a Manufacturer or Trader?
We are manufacturer,we have our own factory.
2. When can I get the price?
We usually quote within 8 hours after getting your detailed requirements,like size,quantity etc.If it is an urgent order,you can call us directly.
3. What about the lead time for mass product?
The lead time is based on the quantity, about 7-12days.For graphite product,apply Dual-use items license need about 15-20 working days.
4. What is your terms of delivery?
We accept FOB,CFR,CIF,EXW,DAP,DDP,etc.You can choose the most convenient way for you.Besides that,we can also shipping by Air and Express.
