RP Graphite Electrode For Glass Melting
Products Description
RP graphite electrode for glass melting
RP graphite electrode is a type of graphite electrode with a lower level of physical and electrical properties compared to UHP and HP graphite electrodes. It is typically used for applications with lower power requirements and shorter operating times.
In glass melting, RP graphite electrodes are used in electric furnaces to generate the heat necessary to melt and refine glass. The electrodes are inserted into the furnace and subjected to an electric current, which causes the graphite to heat up and transfer the heat to the surrounding materials. RP graphite electrodes are typically used in smaller glass melting furnaces, as they have a lower power capacity than HP or UHP graphite electrodes.
Products parameters
|
Grade |
Nominal Diameter |
Current Load |
Current Density |
|
|
in |
mm |
A |
A/cm2 |
|
|
RP |
8 |
200 |
5000-6900 |
15-21 |
|
9 |
225 |
6900-9000 |
15-21 |
|
|
10 |
250 |
7000-10000 |
14-20 |
|
|
12 |
300 |
10000-13000 |
14-18 |
|
|
14 |
350 |
13500-18000 |
14-18 |
|
|
16 |
400 |
18000-23500 |
14-18 |
|
|
18 |
450 |
22000-27000 |
13-17 |
|
|
20 |
500 |
25000-32000 |
13-16 |
|
|
22 |
550 |
31500-39000 |
13-16 |
|
|
24 |
600 |
35000-41000 |
13-15 |
|
|
HP |
8 |
200 |
5500-9000 |
18-25 |
|
9 |
225 |
6500-10000 |
18-25 |
|
|
10 |
250 |
8000-13000 |
18-25 |
|
|
12 |
300 |
13000-17400 |
17-24 |
|
|
14 |
350 |
17400-24000 |
17-24 |
|
|
16 |
400 |
21000-31000 |
16-24 |
|
|
18 |
450 |
25000-40000 |
15-24 |
|
|
20 |
500 |
30000-48000 |
15-24 |
|
|
22 |
550 |
39000-59000 |
15-23 |
|
|
24 |
600 |
44000-67000 |
13-21 |
|
|
UHP |
12 |
300 |
15000-67000 |
20-30 |
|
14 |
350 |
20000-30000 |
20-30 |
|
|
16 |
400 |
25000-40000 |
19-30 |
|
|
18 |
450 |
32000-45000 |
19-27 |
|
|
20 |
500 |
38000-55000 |
18-27 |
|
|
22 |
550 |
42000-64000 |
17-26 |
|
|
24 |
600 |
50000-76000 |
17-25 |
|
|
26 |
650 |
56000-84000 |
17-25 |
|
|
28 |
700 |
67000-100000 |
17-25 |
|

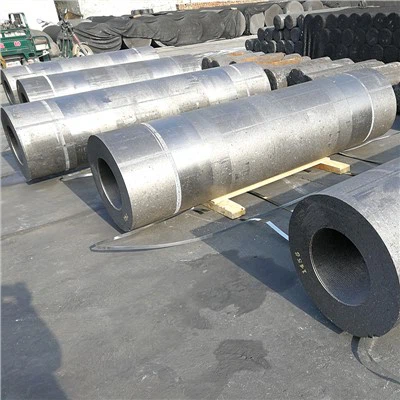

Product Picture
Graphite electrode application
Aluminum production: RP graphite electrodes are used in the production of aluminum using the Hall-Héroult process.
Copper refining: RP graphite electrodes are used in the refining of copper in electric arc furnaces.
Steelmaking: RP graphite electrodes are used in the production of steel in electric arc furnaces.
Silicon smelting: RP graphite electrodes are used in the smelting of silicon in electric arc furnaces.
Glass melting: RP graphite electrodes are used in the production of glass in electric furnaces.
Packing and Shipping
Finished Graphite Electrodes are packed according to customers' requirements, shipped via containers or trucks, and provided with perfect after-sales service.
FAQ
1. Are you a Manufacturer or Trader?
We are manufacturer,we have our own factory.
2. When can I get the price?
We usually quote within 8 hours after getting your detailed requirements,like size,quantity etc.If it is an urgent order,you can call us directly.
3. What about the lead time for mass product?
The lead time is based on the quantity, about 7-12days.For graphite product,apply Dual-use items license need about 15-20 working days.
4. What is your terms of delivery?
We accept FOB,CFR,CIF,EXW,DAP,DDP,etc.You can choose the most convenient way for you.Besides that,we can also shipping by Air and Express.
5. Do you provide samples?
Yes,samples are available for you.
6. Product packaging?
We are packed in wooden cases,or according to your requirements.
