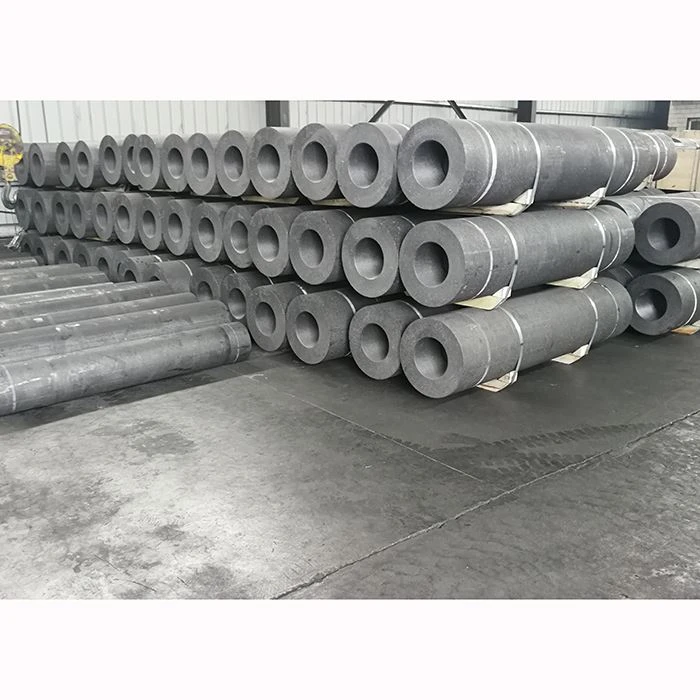

Higher Purity Graphite Electrode
At present, with the rapid development of large-capacity and ultra-high-power electric arc furnaces, the quality requirements for large-size and high-purity graphite electrodes are getting higher and higher. In the smelting process of DC electric arc furnace and AC electric arc furnace, the requirements of the power supply system (extreme voltage, current) in the initial melting, melting, oxidation and reduction stages are different, and their physical and chemical properties are also significantly different.
Recommended Current Load of higher purity graphite electrode
Grade | Nominal Diameter | Current Load | Current Density | |
in | mm | A | A/cm2 | |
RP | 8 | 200 | 5000-6900 | 15-21 |
9 | 225 | 6900-9000 | 15-21 | |
10 | 250 | 7000-10000 | 14-20 | |
12 | 300 | 10000-13000 | 14-18 | |
14 | 350 | 13500-18000 | 14-18 | |
16 | 400 | 18000-23500 | 14-18 | |
18 | 450 | 22000-27000 | 13-17 | |
20 | 500 | 25000-32000 | 13-16 | |
22 | 550 | 31500-39000 | 13-16 | |
24 | 600 | 35000-41000 | 13-15 | |
HP | 8 | 200 | 5500-9000 | 18-25 |
9 | 225 | 6500-10000 | 18-25 | |
10 | 250 | 8000-13000 | 18-25 | |
12 | 300 | 13000-17400 | 17-24 | |
14 | 350 | 17400-24000 | 17-24 | |
16 | 400 | 21000-31000 | 16-24 | |
18 | 450 | 25000-40000 | 15-24 | |
20 | 500 | 30000-48000 | 15-24 | |
22 | 550 | 39000-59000 | 15-23 | |
24 | 600 | 44000-67000 | 13-21 | |
UHP | 12 | 300 | 15000-67000 | 20-30 |
14 | 350 | 20000-30000 | 20-30 | |
16 | 400 | 25000-40000 | 19-30 | |
18 | 450 | 32000-45000 | 19-27 | |
20 | 500 | 38000-55000 | 18-27 | |
22 | 550 | 42000-64000 | 17-26 | |
24 | 600 | 50000-76000 | 17-25 | |
26 | 650 | 56000-84000 | 17-25 | |
28 | 700 | 67000-100000 | 17-25 | |

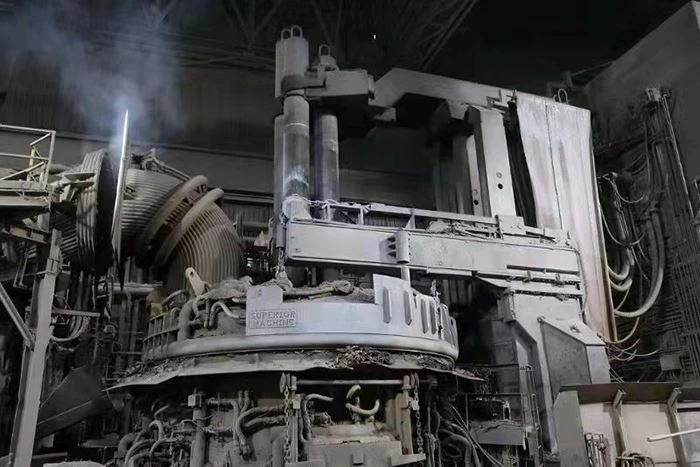

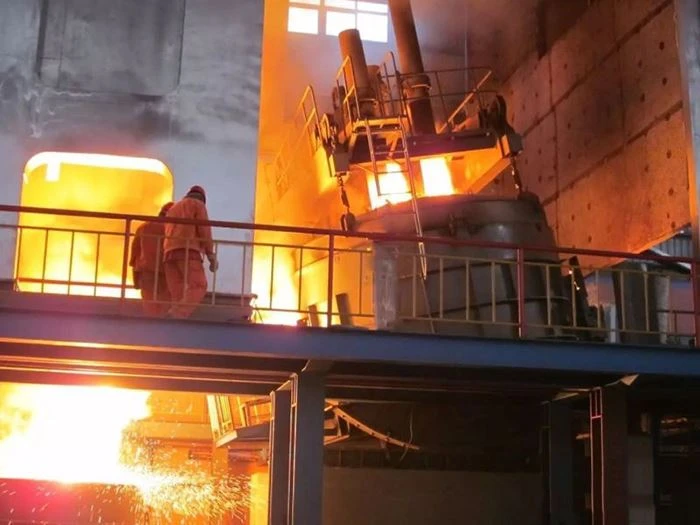

Application of higher purity graphite electrode
Xinhui carbon High purity Graphite Electrodes are widely used in various foundry manufacture DC/AC high power electric arc furnaces, ladle refining furnaces for smelting various alloy steels, etc.
Features of higher purity graphite electrode
♦ Excellent high temperature strength.
♦ Very low electric resistance at high temperature.
♦ Good thermal conductivity and low thermal expansion coefficient.
♦ Good thermal shock resistance.
♦ Easy for processing, low material consumption.
Certificate
Q&A
1.Q: Can you give me a discount?
A: Discounts are possible, but we need to look at the actual quantity. We have different prices for different quantities. The discount depends on the quantity, and our price is very competitive in this field.
2.Q: Which manufacturer is it to purchase Higher Purity Graphite Electrode?
A: We recommend you to visit Xinhui Carbon Sales Co., Ltd for field investigation and procurement at any time. Our factory is a strong manufacturer of graphite electrodes and has 17 of your production experience. Our professional technical RESEARCH and development team will surely guarantee your good product quality.
3.Q:May I have a field trip to your factory?
A: You are very welcome to visit the factory, we will be ready to welcome your arrival at any time.
